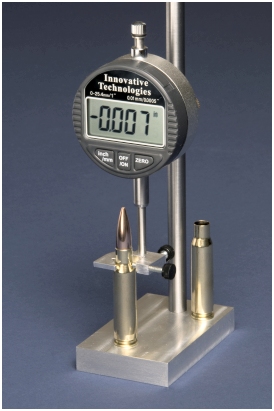

Our Digital Headspace Gauge shows the exact clearance (at the shoulder) that YOUR handloads will have in YOUR particular chamber.   Very simple . . . . just press one button, and it compares your handloads to one of your fired cases.   Remember, a fired case is like a casting of your chamber.   This is the most accurate way to adjust your die height - without guessing.   It is very common to find handloads with their shoulder pushed back way too far.   The shoulder of your handloads should be set back no more than .002" for a perfect fit.   Reloaders that run their shellholder into the resizing die are often pushing the shoulder up to .016" too far in some rifle chambers.   Those shooters that just resize the neck also need to know "how far" to bump the shoulder.

      Our Digital Headspace Gauge (patent pending) helps you reduce case stretching, get longer case life, and eliminate the possibility of case head separations.   It can also improve accuracy by measuring the bullet "jump" to the rifling.   This gauge doesn't require special tools or a collection of bushings to operate, and it provides uniform downward spring pressure to provide the most consistent readings.   You can now determine the most accurate height setting for your resizing and seating dies.   This gauge also checks case length and overall length (at the rate of about one case per second).

      Resizing dies are designed to make handloads fit in the very smallest chamber that is designed for a particular caliber.   This means that your handloads will always be smaller than your particular chamber.   To make things worse, rifle chambers are always made to fit the largest factory ammo made anywhere.   Production machinists call this "acceptable tolerances".   However, the next time you put the crosshairs on a long range target, you have to ask yourself "If my handloads are small enough to fit any rifle in this caliber, and large enough to not get ripped apart when fired . . . . is that really close enough?"

      Take your handloading to the next level.   One of the main reasons to reload is to make the best handloads possible.   This new Digital Headspace Gauge is in stock, and it comes complete (exactly as shown above).   If you have questions about this unique reloading tool, just let me know.



      Belted magnum cartridges have been around for over 50 years, and most shooters that reload them are familiar with the case expansion problems that occur "just above" the belt.   This usually happens after just 2 or 3 firings - wasting perfectly good cases.   Many shooters have discovered this problem when they find their handloads begin to stick in their chamber, or when they no longer chamber at all.

      Unlike non-belted cases, the belt prevents conventional full length dies from traveling far enough down the case.   This limits the amount of resizing, and brass is plowed rearward.   The brass builds up just above the belt at each reloading, and cases expand.   Neck sizing dies don't bump the shoulder back or resize the tapered case wall.   The best solution is to full length resize, and use this collet die to reduce case width.

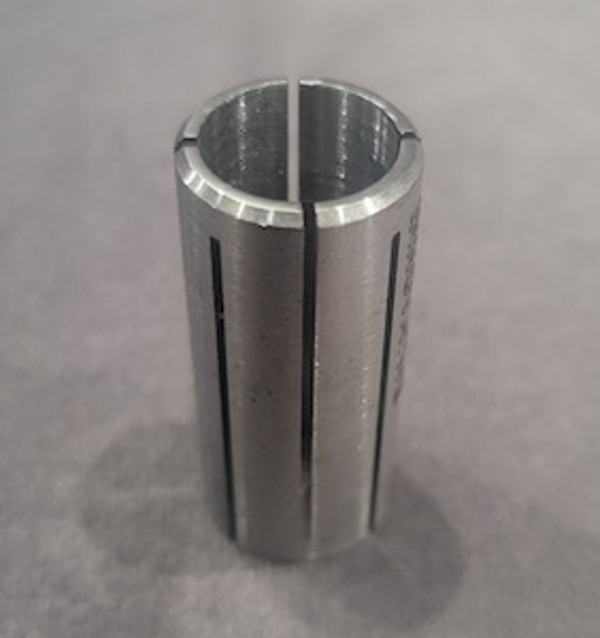

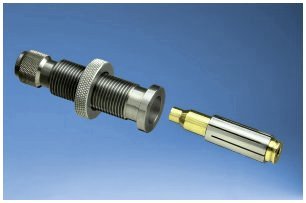

      Our unique Belted Magnum Collet Resizing Die solves this problem and has several other great features.   The top of this die is a case width gauge that shows when a little "extra" case resizing is required.   This resizing die is used to eliminate the case bulge at the expansion ring, after using your full length (or) neck sizing die.   Our collet die insures that your belted magnum ammo will always chamber properly and your cases are now able to last for up to 20 firings, even when using hot loads.   Our resizing die uses a collet that fits over the cartridge case, until it bottoms against the belt.   The case is then pressed into the sizing die.   The collet allows your case to go farther into the die where it only reduces the area "just above" the belt.

      This ONE die and collet is universal and works on ALL of the popular belted magnum calibers including:   .257 Weatherby Magnum,  6.5 Remington Magnum,  .264 Winchester Magnum,  .270 Weatherby Magnum,  7 x 61 Sharpe & Hart,  7mm Remington Magnum,   7mm Weatherby Magnum,  7mm STW,  .300 H&H Magnum,   .300 Winchester Magnum,   .300 Weatherby Magnum,   .308 Norma Magnum,  8mm Remington Magnum,   .338 Winchester Magnum,   .340 Weatherby Magnum,  .350 Remington Magnum,  .358 Norma Magnum,  .375 H&H Magnum,  .416 Remington Magnum,   .458 Winchester Magnum,   .458 Lott Magnum and several belted wildcat cartridges.   There are no extra collets to buy when resizing different calibers.   The U.S. Secret Service was one of our first customers to purchase this product.

      So far, we've sold over 2,800 of these dies.   Unfortunately, the high cost of manufacturing them usually requires us to build a waiting list before each production run.   These dies are in stock.   So . . . . if you would like to get one, don't wait too long.

Innovative Technologies
(Attn: Larry A. Willis)
1480 Guinevere Dr.
Casselberry, FL 32707

Phone:   407-695-2685
     Cell:    407-718-2308
  Email:     it@mpinet.net
